DSC - USB Load Cell Indicator

The Morehouse DSC-USB is a USB powered load cell indicator. When paired with a computer and Morehouse software the DSC-USB  is a true direct reading system. The system uses coefficients from the calibration report so that when 10,000 lbf is applied, the system will read 10,000 lbf ± the lower limit factor.

The DSC-USB is a load cell indicator for a true direct reading load cell system, which is powered through a USB port. This system is available as a lower cost system than the higher accuracy HADI indicator. It is ideal for calibration of load cells, testing machines, and other force or torque systems.

Features include:

  • Direct reading according to ASTM E74 and ASTM E2428
  • System is fully USB powered, eliminating excess power cables
  • ASTM Class A lower limits better than 2 % when paired with a Morehouse Ultra-Precision Load Cell

The Morehouse DSC-USB system requires a computer to be powered and display load data. The DSC-USB system with software complies with ASTM E74, E2428, and ISO 376. Accreditation bodies require compliance with the standards. The DSC-USB system with Morehouse software eliminates the need to use load tables, excel reports, and other interpolation methods to ensure compliance with these standards.

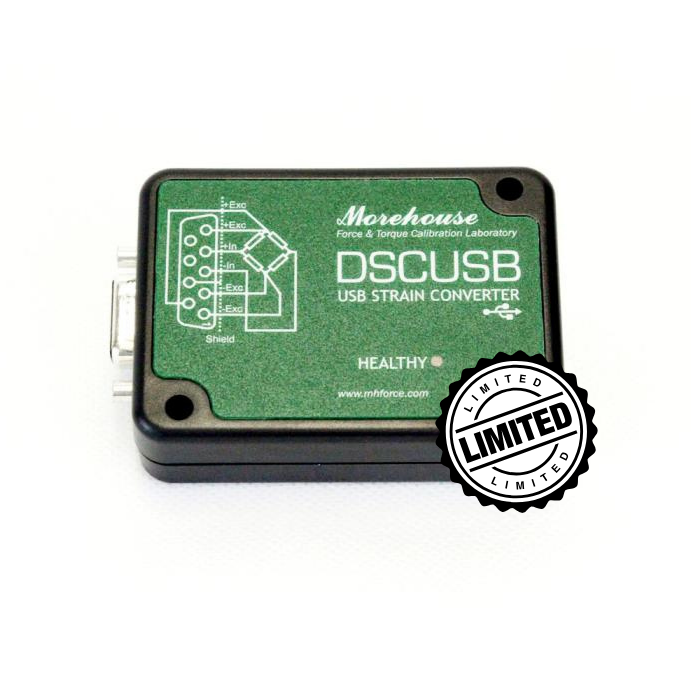

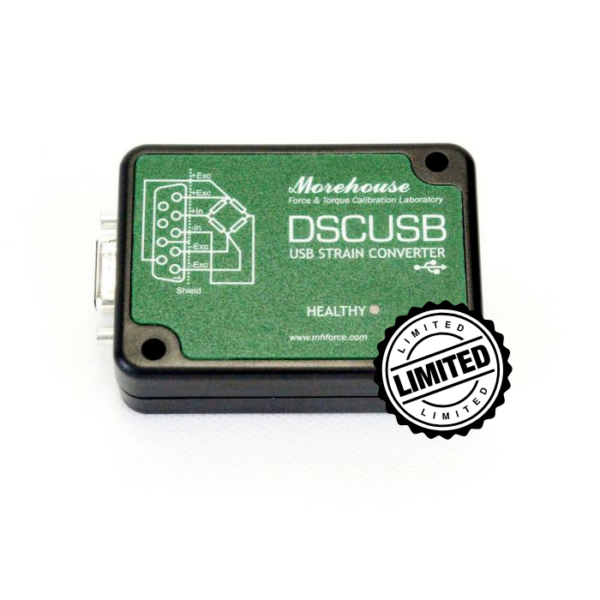

Product Photos

Commonly Purchased With

When You're Looking for More Accurate Measurements

Morehouse would like the opportunity to earn your business. Contact us today.
