#1 Best Metrology Grade Ultra Precision Load Cell

Morehouse Ultra Precision Load Cells are accurate to better than 0.005 % of full scale, making them the reference standard of choice for calibration laboratories that want to improve their measurement process.

Note: the accuracy value does not include contributions due to stability. Most Morehouse Ultra Precision Load Cells have a year-to-year stability of better than 0.03 % from 20 % - 100 % of the range after the initial break-in period and when used with a 4215 plus, or HADI.

Standard capacities are in stock now!

Morehouse Ultra Precision Load Cell

Morehouse Ultra-Precision Load Cells are used when high accuracy and low measurement risk are critical. These load cells are designed for stability and reproducibility, making them the #1 choice for metrology-grade load cells. These strain gauge-type load cells are often the choice for companies that want their reference standard to have the lowest possible uncertainties. Lower uncertainties allow for shorter setup times, less frequent standard changes, and fewer standards to maintain.

When calibrated with deadweight Primary Standards, the Ultra-Precision Load Cells are suitable for the following uses:

  • Secondary Standard with an ASTM E74 Class A verified range of forces better than 2 %, and Class AA verified range of forces better than 10 % of capacity when used only in a single direction. [1]
  • ISO 376 Class 00 from 5 % of capacity (Case C only, Case D varies by capacity)
  • The reference standard used to calibrate other load cells
  • Applications where side load sensitivity is critical
  • Force applications where measurement risk must be minimized and measurement confidence in results must be maximized
  • Field use where transporting fewer standards provides cost savings

[1] When the directions are combined, there may be a reduction in the loading range. The reduction varies by capacity, and the Class A and AA verified range of forces could double.

A common issue with most load cells is the connector breaking. This often results in repair and/or another calibration of the load cell. This is not a problem with Morehouse load cells.

Morehouse Ultra Precision Load Cells come with a connector protector and are available in capacities from 300 lbf  (1 kN) up to 110,000 lbf (500 kN). After 110,000 lbf (500 kN), load cells can be made to order. Since physical weight increases to over 100 lbs after 110,000 lbf, we recommend Morehouse Multi-Column Load Cells for any capacity above 200,000 lbf.

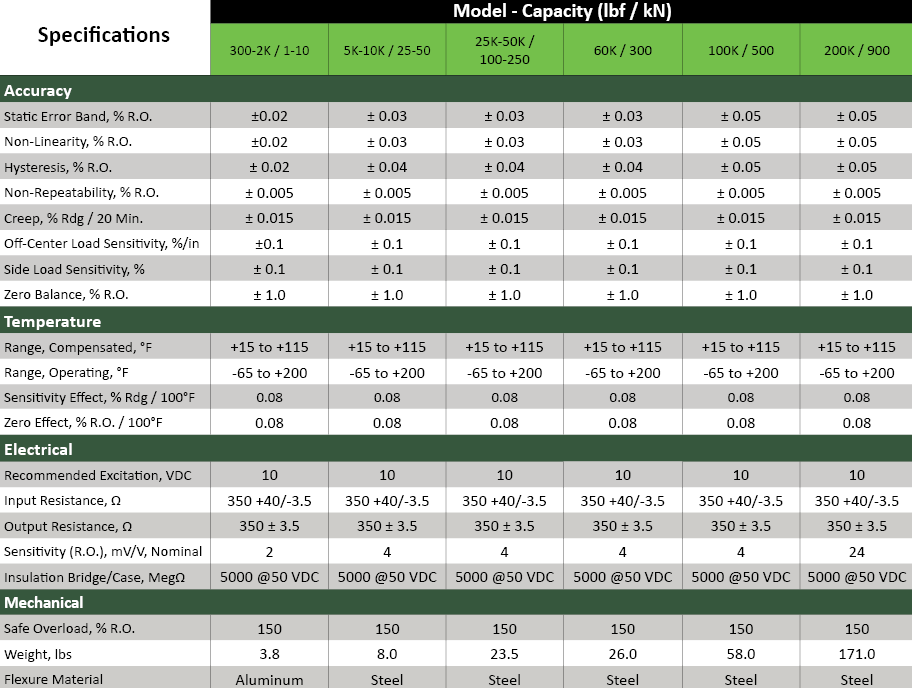

Specifications

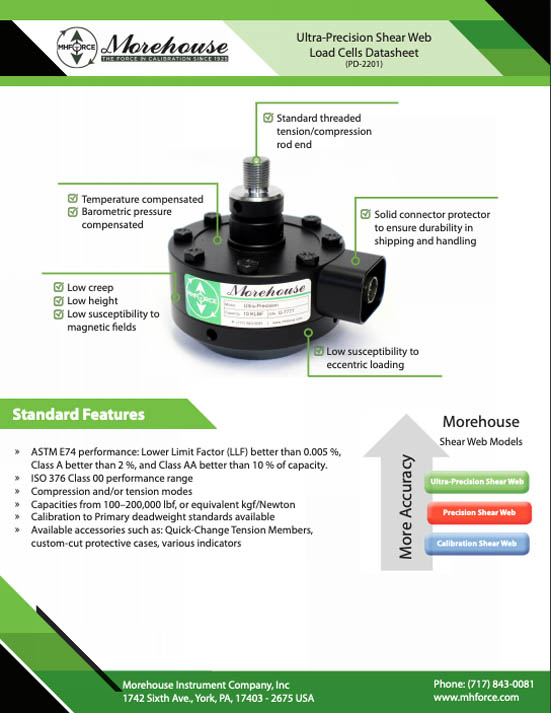

Product Data Sheets

Product Photos

Commonly Purchased With

When You're Looking for More Accurate Measurements

Morehouse would like the opportunity to earn your business. Contact us today.
