Mini 600k lbf Load Cell (Weighs Less Than 27 lbs!)

Field calibration technicians are checking less luggage and walking upright with this lightweight and portable Mini 600k lbf Load Cell.

With an accuracy of better than 0.02 % of full scale, a weight of fewer than 30 lbs, and a height of 7 inches, Morehouse Mini Load Cells are the standard of choice for ultimate portability.

Mini 600k lbf Load Cells are in stock now!

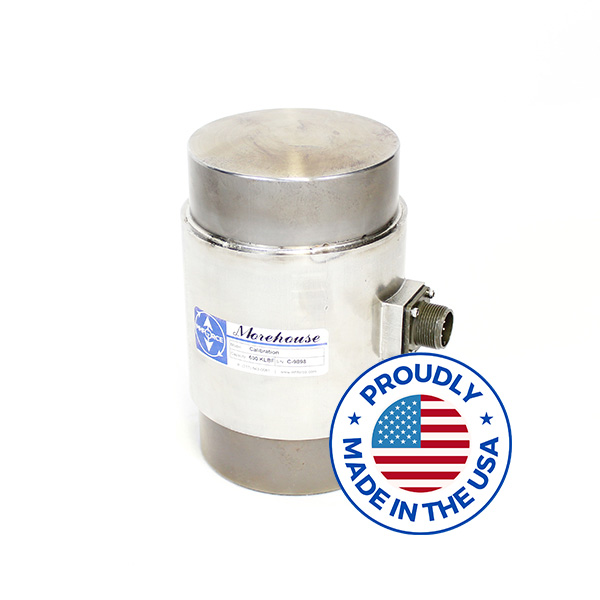

Mini 600k lbf Load Cell

Morehouse Mini 600k lbf Cells are designed for companies that make field measurements in accordance with ASTM E4, ISO 7500, and as a reference standard where ultimate portability is preferred. This load cell with a top adapter weighs less than 40 lbs, making it lightweight and easy to carry. This saves on transportation and extra baggage check-in costs. These strain gauge-type load cells were designed with portability in mind.

These High-Capacity Mini 600k lbf Load Cells are suitable for the following uses:

  • Applications where more compact load cells are required
  • ISO 376 standard meeting Class 1 requirements
  • To calibrate to ASTM E4 with an ASTM Class A verified range of forces of better than 8 % or better of capacity
  • Ideal for masonry machines where height is a concern (12 inches or less), as the masonry head should be kept in the machine for calibration

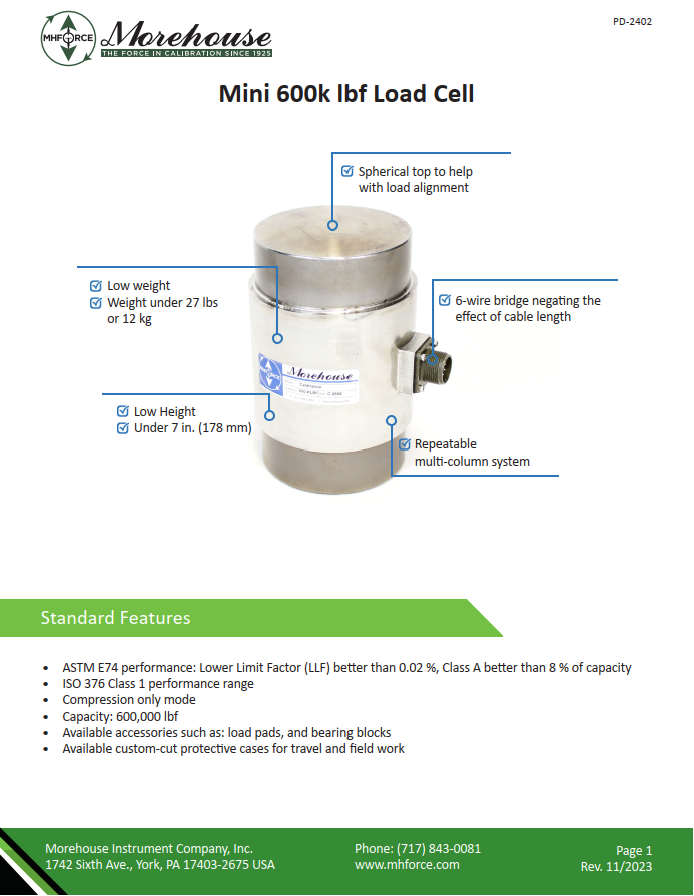

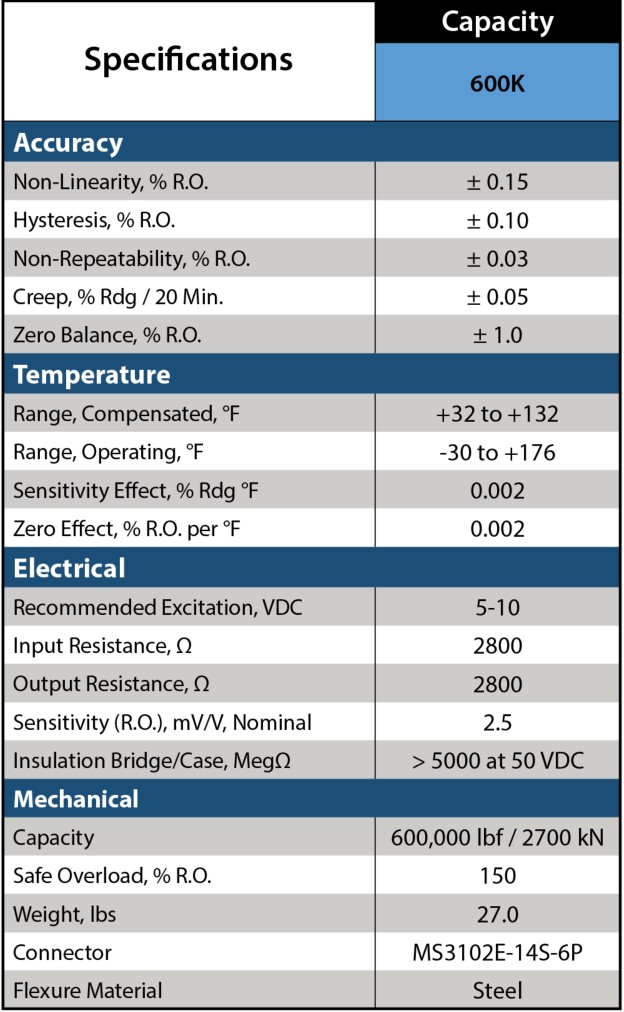

Product Data Sheets

Product Photos

Commonly Purchased With

When You're Looking for More Accurate Measurements

Morehouse would like the opportunity to earn your business. Contact us today.
