Shackle Load Pins: Unrivaled Wireless Accuracy and Durability

Morehouse, the industry leader in calibration services, is proud to introduce the next generation of shackle load pins, which sets new standards in accuracy and durability. Engineered to outclass others with a typical 10:1 performance margin, they boast a robust 5x overload capacity and superior IP67 protection. With wireless capabilities, these pins allow monitoring from a 600-meter range, enhancing safety and operational efficiency across various lifting and rigging tasks.

Choose Morehouse for reliability that reduces costs and elevates safety. Discover the Morehouse Advantage—contact us at





Shackle Load Pin: Wireless Precision Measurement for Your Lifting Applications

In the world of lifting and rigging, precision is paramount. Our new Wireless Shackle Load Pins outperform the most common shackle load pins on average by at least a factor of 10! This means you can be confident that you are getting the most accurate measurements possible every time. And we refined them to stand 5x overload capacity without causing damage! Plus, our Shackle Load Pins exceed IP67 certification standards, ensuring you get accurate measurements even in harsh environments.

Wireless Load Monitoring

  • A single receiver can read multiple load pins, saving time and hassle.
  • Measure total or individual forces to get the data you need.
  • Adjustable sample times and sleep modes extend battery life.
  • Long-range wireless communication at 2.4GHz using our T24 handheld receiver.
  • Free App for Android or IOS to capture and display info on your phone.
  • Bluetooth option can be read by multiple phones at the same time.
  • Accurate load readings in real-time.


Shackle Load Pin: Proven Performance

We put our Shackle Load Pins to the test against one of the better manufacturers on the market. The results were clear: our shackle load pins outperformed the competition by a minimum of 4:1.

Our Shackle Load Pins are built to last and are more durable than “standard” load pins. They are constructed from high-quality materials and engineered to withstand the toughest conditions. This means you can save money on costly replacements.

Our Shackle Load Pins provide superior, accurate load readings in real time, allowing customers to get better measurements of their loads in real time.

If you are looking for the most accurate, durable, and versatile shackle load pins on the market, look no further than Morehouse. Contact us today at to learn more about our new Shackle Load Pins.

We compared one of our shackle load pins to that of one of the better manufacturers on the market. The results showed the Morehouse shackle load pin outperformed one of the better manufacturers of this type of equipment by a minimum of around 4:1.

Relative Repeatability Error Between Both Units

When we compared the average of all data points to another manufacturer's product, the Morehouse Shackle Load Pins outperformed the other. The Morehouse Shackle Load Pin was around 39.56 times more repeatable than the other manufacturer.

Relative Reproducibility Error Between Both Units

When we looked at the comparison data regarding reproducibility, meaning breaking the unit done and switching the positioning of the load pin, we observed the Morehouse Shackle Load Pin at a minimum, had reproducibility data that was 3.76 better and, on some points, up to 43.5 times better.

If we took the average of all data points, the Morehouse unit was found to be around 57.06 times more reproducible than the other manufacturer. To know more about this test, please read our article detailing the results here.

Try it out for yourself! If you use any type or style of load pins, try taking the pin out and orienting it in another position. What happens? Our guess is you will find that the reproducibility condition of these pins is at least 4-5 times what the manufacturer might claim, meaning a device with an accuracy specification of 1 % will be 4-5 % or more. In contrast, the Morehouse shackle load pins will maintain better than 0.5 % from 20 % - 100 % of the range of use.

Contact Sales at for more information.

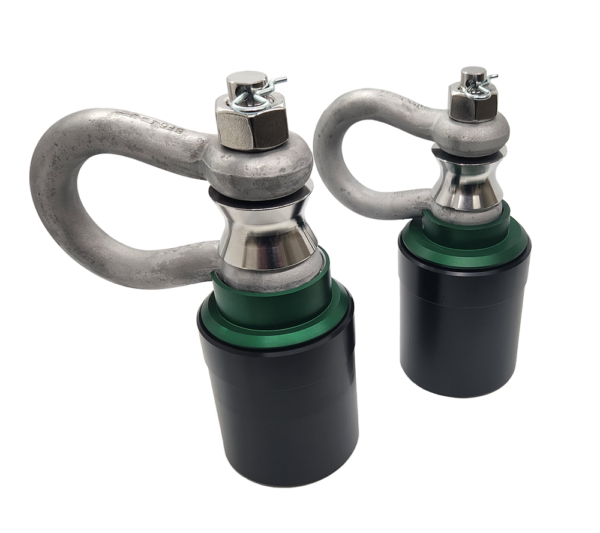

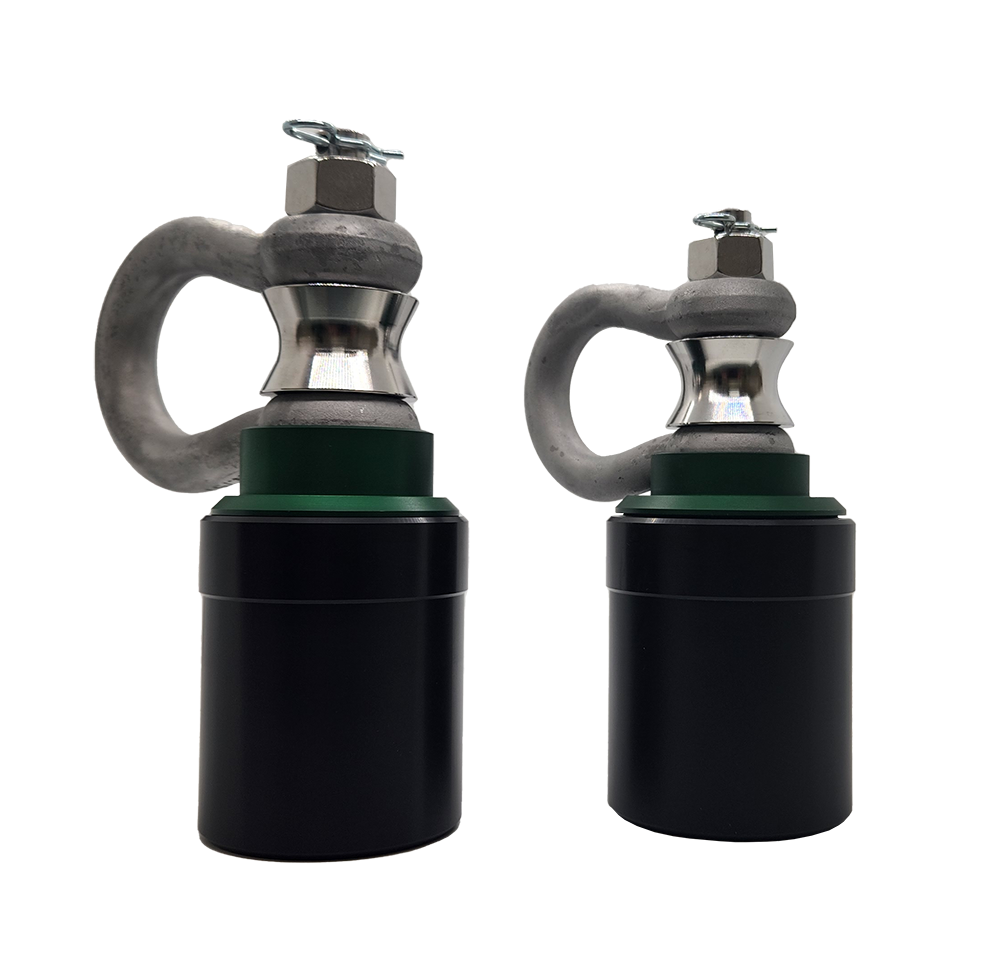

Product Photos

When You're Looking for More Accurate Measurements

Morehouse would like the opportunity to earn your business. Contact us today.
