Morehouse Brinell Calibrator

The Morehouse Calibrator is an easy-to-use force measuring instrument able to meet the ever-increasing emphasis on product quality control demands for Brinell hardness testing.

This product has been discontinued, we will be introducing new services soon as we continue to provide better options for our customers.

Morehouse Brinell Calibrator Specifications:
  • Overall Dimensions: Standard Version 5.25” x 2” x 5.875” high.  A special  Low Profile version is offered at a height of 4 "
  • Certified accuracy: 0.1%
  • Weight of Calibrator: 4 lbs
  • Calibrated Loads: 500 kgs.; 1,000 kgs.; 1,500 kgs.; 2000 kgs.; 2,500 kgs.; and 3,000 kgs.
  • Approx. deflection at capacity in inches: .060”
  • Approx. deflection at capacity in divisions: 600 div.
  • Sensitivity: 0.1 Division
  • Readability: 0.1 Division
  • Shipping Weight: ~10 lbs.

The Morehouse Calibrator is simply inserted into a hardness tester in place of the usual metal specimen. The load is applied to the Brinell Calibrator, and the resulting deflection is read on the indicator. The error of the hardness tester load is determined by dividing the deflection of the Calibrator under load by the difference between the actual deflection and what the deflection should be for the calibrated load.

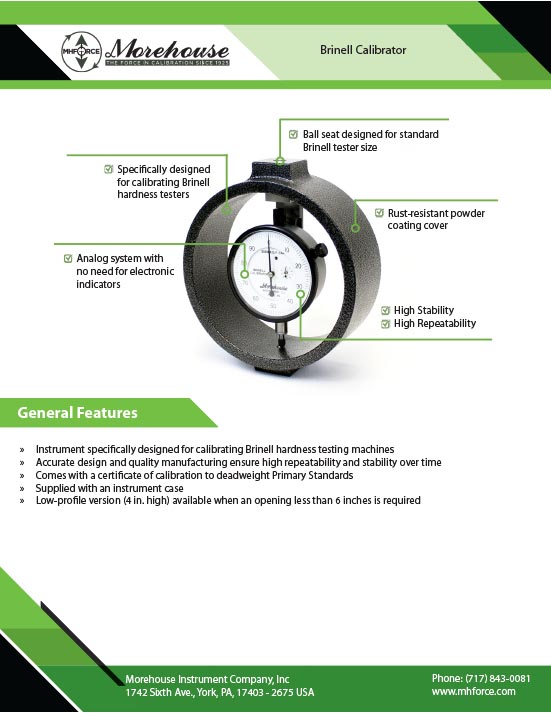

Product Data Sheets
