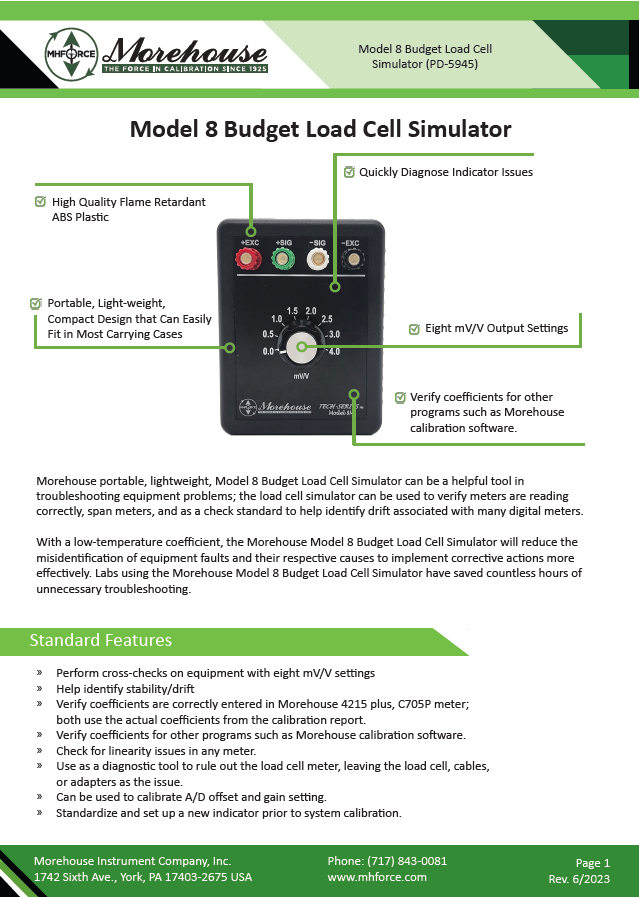

Load Cell Simulator

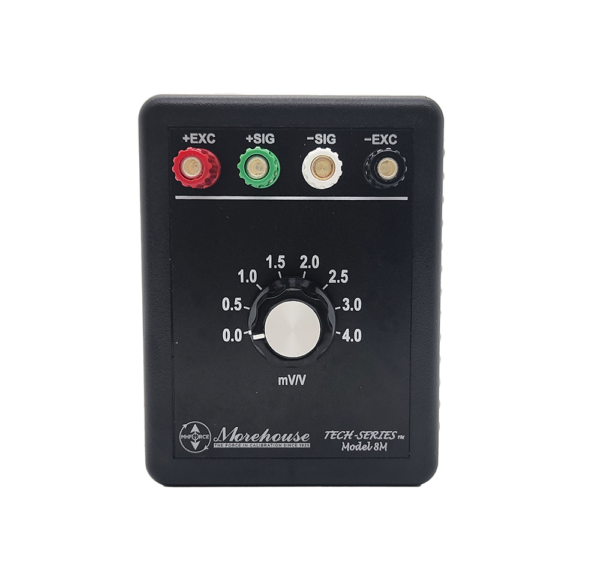

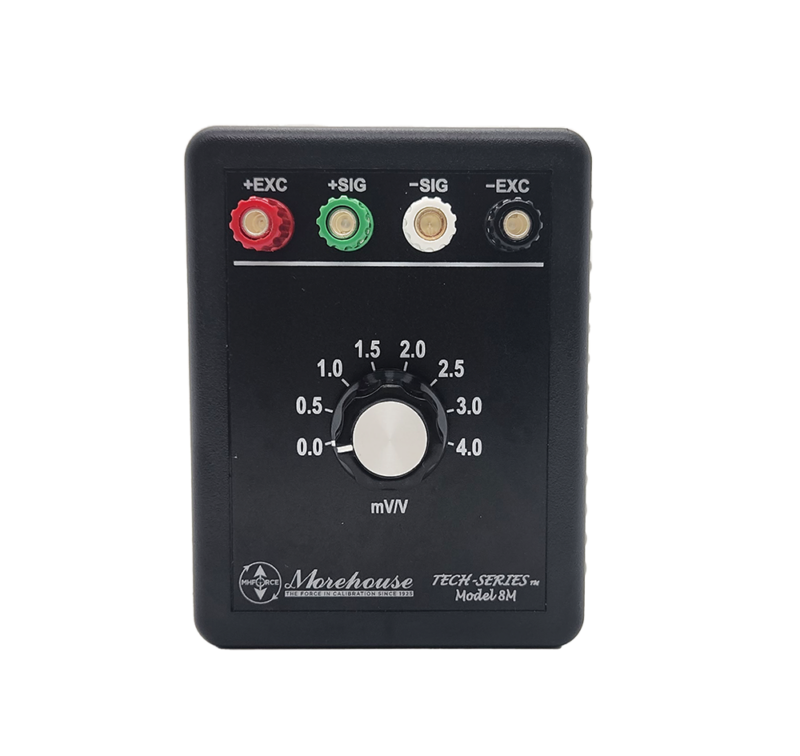

Morehouse portable, lightweight, Model 8 Budget Load Cell Simulator can be a helpful tool in troubleshooting equipment problems; the load cell simulator can be used to verify meters are reading correctly, span meters, and as a check standard to help control drift associated with many digital meters.

With a low-temperature coefficient, the Morehouse Model 8 Budget Load Cell Simulator will reduce the misidentification of equipment faults and their respective causes to implement corrective actions more effectively. Labs using the Morehouse Model 8 Budget Load Cell Simulator have saved countless hours of unnecessary troubleshooting.

Our simulator allows the end-user to do the following:

• Perform multiple cross-checks on equipment with eight mV/V settings
• Help identify stability/drift
• Verify coefficients are correctly entered in Morehouse 4215 plus, C705P meter; both use the actual coefficients from the calibration report
• Verify coefficients for other programs such as Morehouse calibration software
• Check for linearity issues in any meter
• Use as a diagnostic tool to rule out the load cell meter, leaving the load cell, cables, or adapters as the issue
• Can be used to calibrate A/D offset and gain setting
• Standardize and set up a new indicator before system calibration
