Easy to Use Morehouse Miniature S-Type Load Cell

Morehouse miniature s-type load cells are accurate to better than 0.0125 % of full scale with 1.5 to 10x overload protection, making them one of the best small force from 1 lbf to 50 lbf measuring instruments. These compression and tension-type miniature s-type load cells are often the choice for companies that want the lowest possible uncertainties at an affordable price. The Morehouse miniature s-type load cells cost significantly less than other manufacturers selling similar products.

Standard capacities are in stock now!



Miniature S-Type Load Cell

Morehouse miniature s-type load cells from 1 lbf to 50 lbf are critical when a small-size load cell with high accuracy and low measurement risk is needed.

Based on measured performance, the miniature s-type load cell represents the gold standard for miniature S-type load cells with the industry’s lowest range of use, obtaining ASTM E74 Class A verified range of forces from 5 % of capacity.

These compression and tension-type miniature s-type load cells are often the choice for companies that want the lowest possible uncertainties at an affordable price. The Morehouse miniature s-type load cells cost significantly less than other manufacturers selling similar products.

The lower uncertainties allow for shorter setup times, less frequent standard changes, and fewer standards to maintain.

The Morehouse miniature s-type load cell are suitable for the following uses:

  • Field use where space is at a minimum
  • Environments that require durable construction, such as force measurement and robotics
  • ASTM E74 performance: Lower Limit Factor (LLF) better than 0.0125%, Class A better than 5 % of capacity using ascending calibration data.
  • Calibration of small force equipment
  • Applications requiring small forces with extremely high overload protection (10x up to 10 lbf capacities, 1.5x on 20 lbf + capacities)
  • Direct reading applications where an accuracy of better than 0.1 % is required.

If Morehouse  S-beam Miniature Load Cells do not meet your needs, chances are we have something that will. Morehouse offers multiple load cell options, most of which can be readily customized to meet customers’ unique requirements.

Specifications

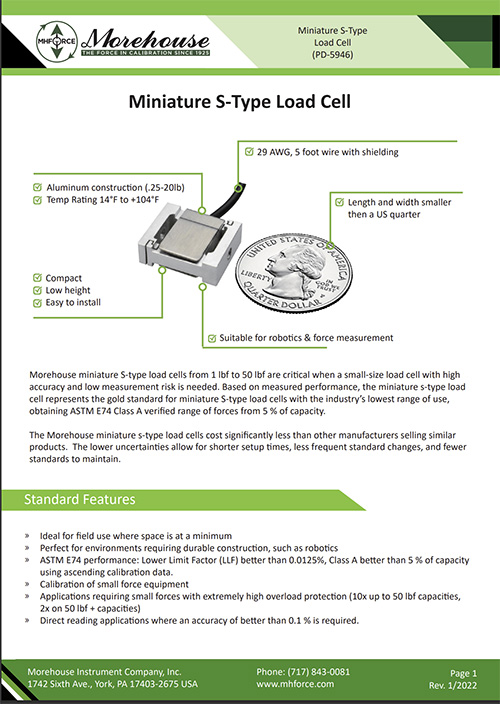

Product Data Sheets
