Expected performance in load cell calibration procedures is a key concept that we have adopted at Morehouse. The term likely originated from discussions during ASTM committee meetings among industry experts. Expected performance helps define how accurately a force-measuring tool works when tested under ideal laboratory conditions. This benchmark gives technicians and quality managers a solid prediction of how their equipment will perform in the field—if it's used properly.

Force calibration helps ensure tools like load cells, force gauges, and dynamometers provide accurate and consistent results. At Morehouse, our goal is to simplify the force calibration process so anyone can get precise measurements and extend equipment life. Whether you're a technician, engineer, or quality manager, this guide will help you understand load cell calibration and improve force measurement accuracy.

What Is Expected Performance in Load Cell Calibration?

Expected performance describes how accurately a force-measuring tool (like a load cell) performs when tested under ideal lab conditions. In our ISO 17025-accredited lab, we use deadweight machines and precision systems to ensure top-tier accuracy.

For example, a 10,000-pound load cell with an error of only ±0.5 pounds has an expected performance of 0.005 % of full scale. However, once that load cell is used outside the lab, differences in setup and conditions can reduce accuracy.

Why Load Cell Performance Changes (De-Rating)

Any change in setup after calibration can reduce accuracy. This process is called de-rating. Here are some typical levels of performance:

• Lab conditions: 0.005 % FS (best-case scenario)
• Minor changes: 0.01 % FS
• Normal shop use: 0.03% to 0.05 % FS
• Poor setups: 0.1 % FS or more

Temperature changes, mismatched adapters, and swapped cables are common causes of drift and error.

Figure 1 Force Calibration Simplified: Expected Performance

What Affects Load Cell Accuracy?

These are the top five factors that impact load cell accuracy:

1. Adapters

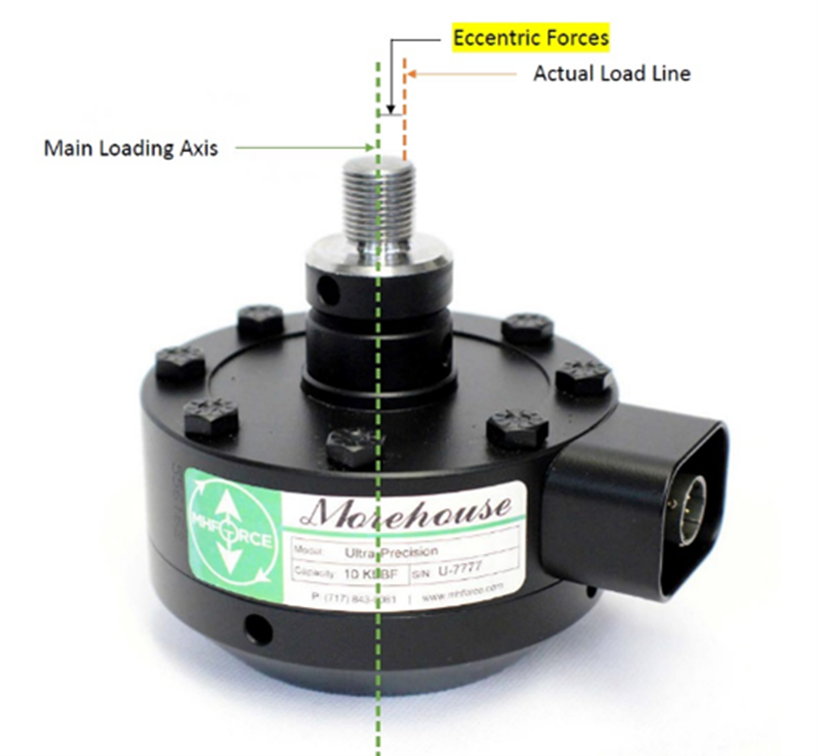

   Improper adapters can cause bending, twisting, or side forces. Always use the same adapters that were used during calibration.
2. Setup and Alignment
   If the system isn’t level, square, or rigid, your measurements won’t be accurate. Our lab setups are precisely aligned to avoid this.
3. Temperature
   Calibration is done at stable room temperatures. If you use your equipment in hot or cold conditions, performance may suffer.
4. Cables and Indicators
   Changing cables or meters changes the system’s electrical characteristics. Stick with the original setup for consistent results.
5. Load Cell Quality
   Higher quality load cells with tighter specs perform better under varying conditions. Budget models may degrade quickly.

What Accuracy Can You Expect After Calibration?

If you use a Morehouse-calibrated load cell:

• With original cables, adapters, and indicators
• At similar environmental conditions as calibration

You can likely expect accuracy around 0.01 % FS or better. If you make changes or use poor setups, your results may degrade to 0.03 %–0.1 % FS or worse.

How to Improve Load Cell Calibration Results

Here’s how to reduce uncertainty and get reliable results:

• Send in your complete system for ISO/IEC 17025 calibration
• Use proper alignment adapters and the tension members with sphericals
• Avoid side loading, bending, and limit torsion
• Maintain stable temperature conditions
• Run reproducibility and repeatability tests under consistent conditions

Summary: Accurate Force Calibration Made Simple

Expected performance shows how repeatable and accurate your load cell can be—if you match the lab setup. A system calibrated at 0.005 % FS in the lab may still perform close to that in real use, as long as best practices are followed.

To reduce drift and improve accuracy:

• Replicate the calibration environment
• Use the correct adapters and cables
• Follow good calibration practices every time
• Use high-quality electrical systems with 6-wire connections
• Always send the adapters you use with the load cell system in with it for calibration

• Let your calibration provider know how you are using the load cell system, and work with them to help replicate your use case.

For more expert tips, download our eBook Force Calibration for Technicians and Quality Managers, read our blog post “My Load Cell Calibration Does Not Match What the Certificate Says,” or attend a Morehouse calibration training webinar.
